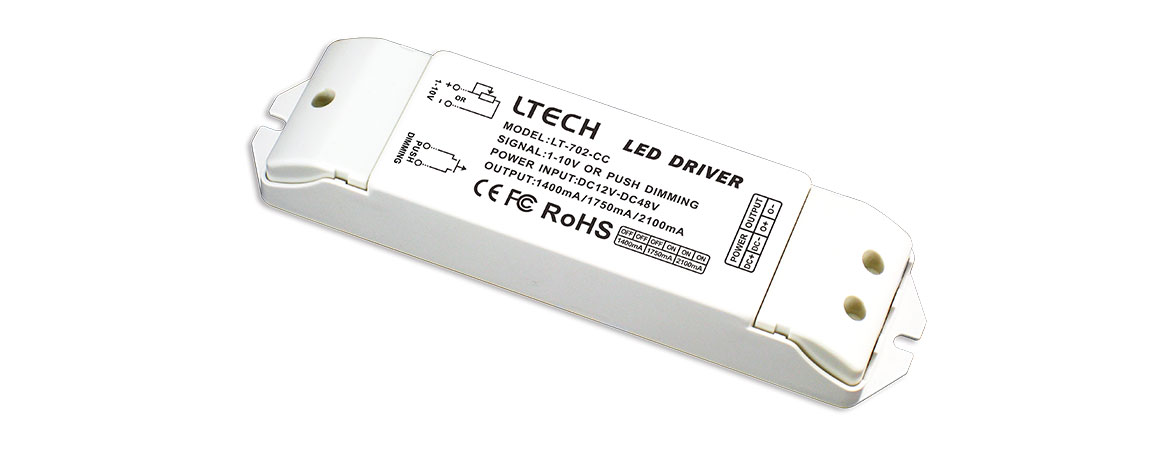

LT-702-CC CC 0-10V, 1-10V Dimming Driver |
|
| Input signal | 0-10V, 1－10V, 10V PWM, resistor or push button |
| Input voltage | DC12V~DC48V |
| Output voltage | DC3V~DC46V |
| Output current | CC 1400/1750/2100mA 3 in 1×1CH |
| Output power | 4.2W~96.6W ×1CH |
| Dimming Range | 0~100% |
| working temperature | -30℃~55℃ |
| Dimension | L175×W44×H30(mm) |
| Package Size | L178×W48×H33(mm) |
| Weight (G.W) | 130g |
